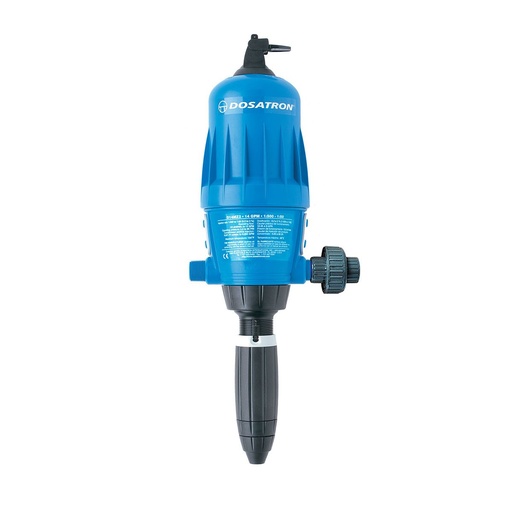

Dosatron 14 GPM Nutrient Doser, With Bypass

Easily dispense fertilizers, fungicides, pesticides, disinfectants, and algaecides with the Dosatron D14MZ2 Injector with bypass top. Powered by water pressure, the dispenser installs directly in your water supply line.

A reliable way to inject chemicals into water lines, the dispenser mixes the appropriate amount of solution with water regardless of variations in flow or pressure in your main line. Replaces the popular DI16 Model and allows flow rates up to 14 GPM.

This injector is fitted at the top with a functional by-pass, allowing you to choose when it is activated or not.

Bypass On: Dosatron works & the concentrate is drawn up

Bypass Off: Dosatron is stopped & does not draw up the product

Advantages

Higher flow rate

Fewer parts

Chemical resistant housing

Easy-to-read ratio selector

Specifications

Pipe Size: 3/4″ NPT

Weight: 6 lbs

Dimensions: 19 1/8″ x 6 5/16″

GPM: 0.05 to 14 GPM (0.19 to 50 LPM)

Pressure: 4.3 to 85 PSI

Ratio: 1:500 to 1:50

Percentage: 0.2 to 2%

Available Options: PVDF (white housing), PAA Seals, Bypass

Included Accessories: Mounting Bracket, Suction Hose, Weighted Strainer & Quick Start Guide

Non-electric proportional fertilizer injectors.  The results: an accurate and uniform feeding of fertilizers, fungicides, acids and more in your irrigation water.  Dosatron fertilizer injectors are of use to greenhouse growers, nurserymen, landscapers, vegetable growers.  Irrigate with: sprinklers, drip trickle, microjet, mist or fog, tape, etc.

*units used without filter, voids warranty. Filter sold separately. A check valve allows flow to go in one direction and is recommended.
